Shandong Ainuo Intelligent Instrument Co., Ltd.
China
| IT and Digital solutions | Equipment, solutions and services for telecommunications Innovation centres |
| Technologies, equipment and materials for electronic manufacturing | Testing and Measuring Equipment for Electronic Components and Systems |
| Robotics & AI | Industrial robotics |
Pavilion 3 Hall 13
Stand No- B6087
Ainuo Instrument was founded in 1993 in the land of Qilu, with self-built industrial parks in both Jinan and Qingdao. For 30 years, it has been dedicated to the research, development, and production of various electrical measuring instruments, test power supplies, and specialized power supplies.

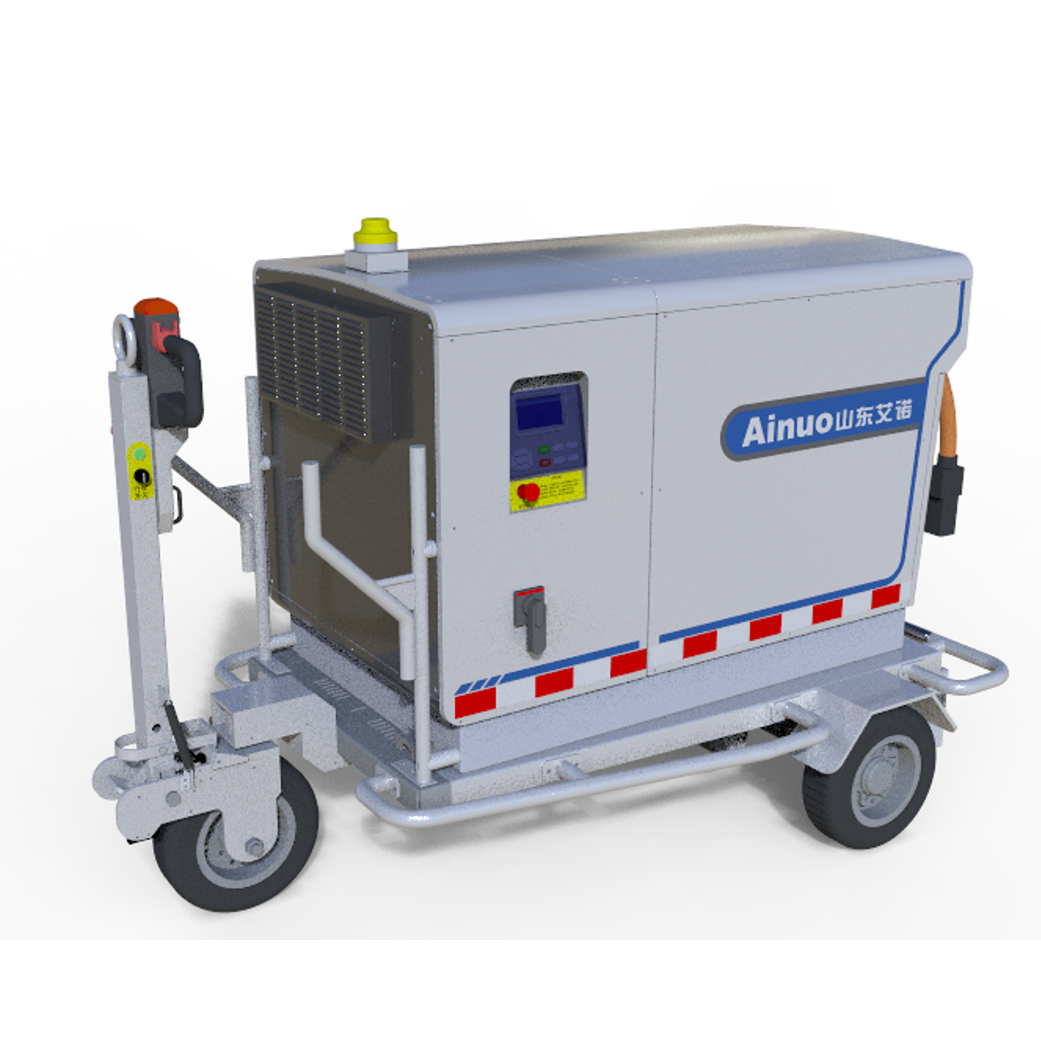

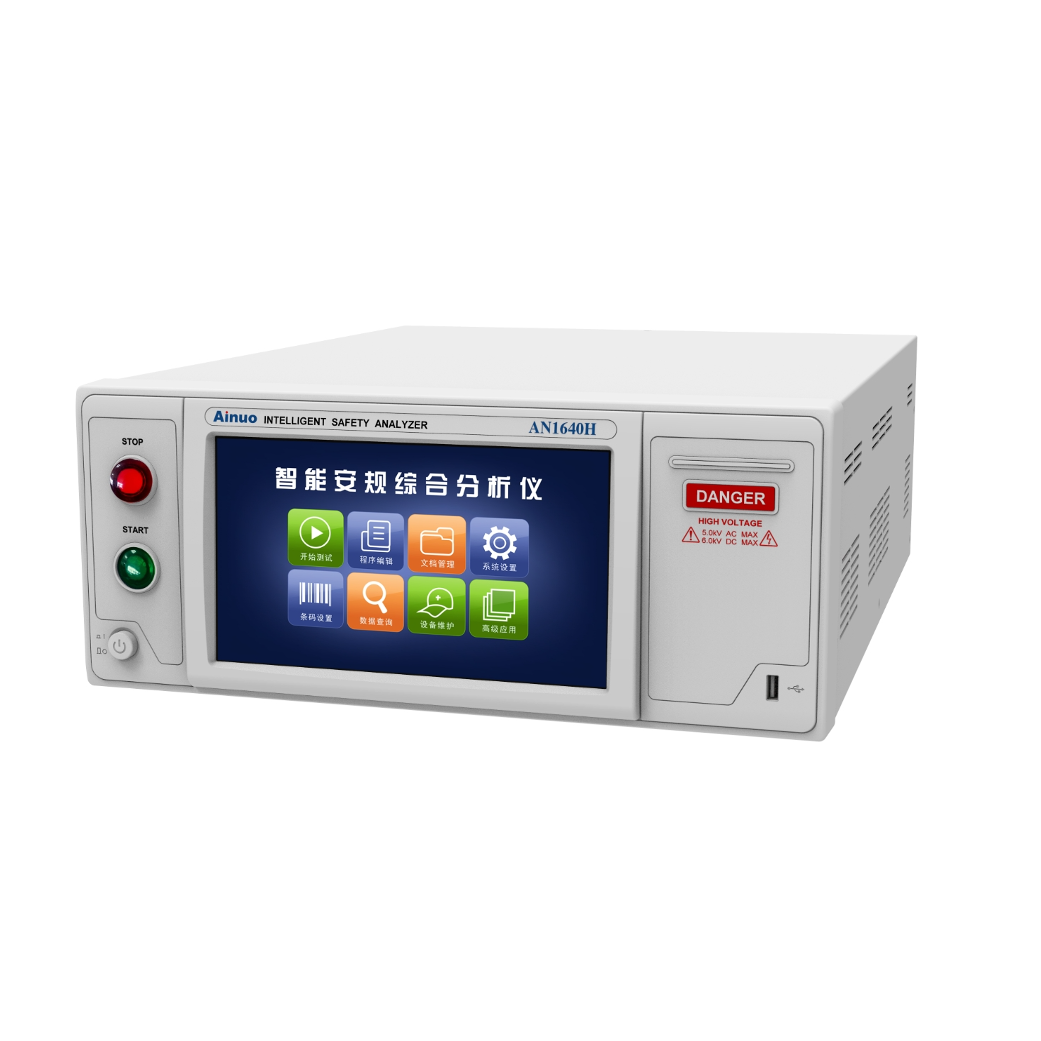

Ainuo's core products include: comprehensive electrical safety testers, AC power supplies, DC power supplies, aircraft ground static variable power supplies (GPU), motor comprehensive test systems, power analyzers, AC/DC electronic loads, and more. These are widely applied in electrical and electronic manufacturing enterprises such as new energy vehicles, photovoltaics and energy storage, household appliances, motor coils, switching power supplies, as well as in specialized fields like aviation, railways, electric power, and in quality inspection, metrology organizations, research institutes, and universities.
All Ainuo products feature completely independent intellectual property rights, with over 300 proprietary IPs, more than 100 invention patents, and the company has led or participated in formulating multiple national standards, industry standards, and metrological regulations and specifications.
（1）2U Half-Width Linear Power Supply AN55(F) Series
a. Supports output from both front and rear panels, flexibly adapting to desktop use and various system integration scenarios;
b. Three operating modes: CV, CC, and CP, meeting a wider range of testing requirements;
c. Internal circuitry uses the latest transformer and power devices, delivering pure and stable power while being lighter in weight, offering higher current accuracy, and achieving up to 75% energy conversion efficiency;
d. High-speed current dynamic response, supporting fast MPPT tracking speed for micro-inverters;
e. Powerful programmable functions with flexible parameter and feature settings.

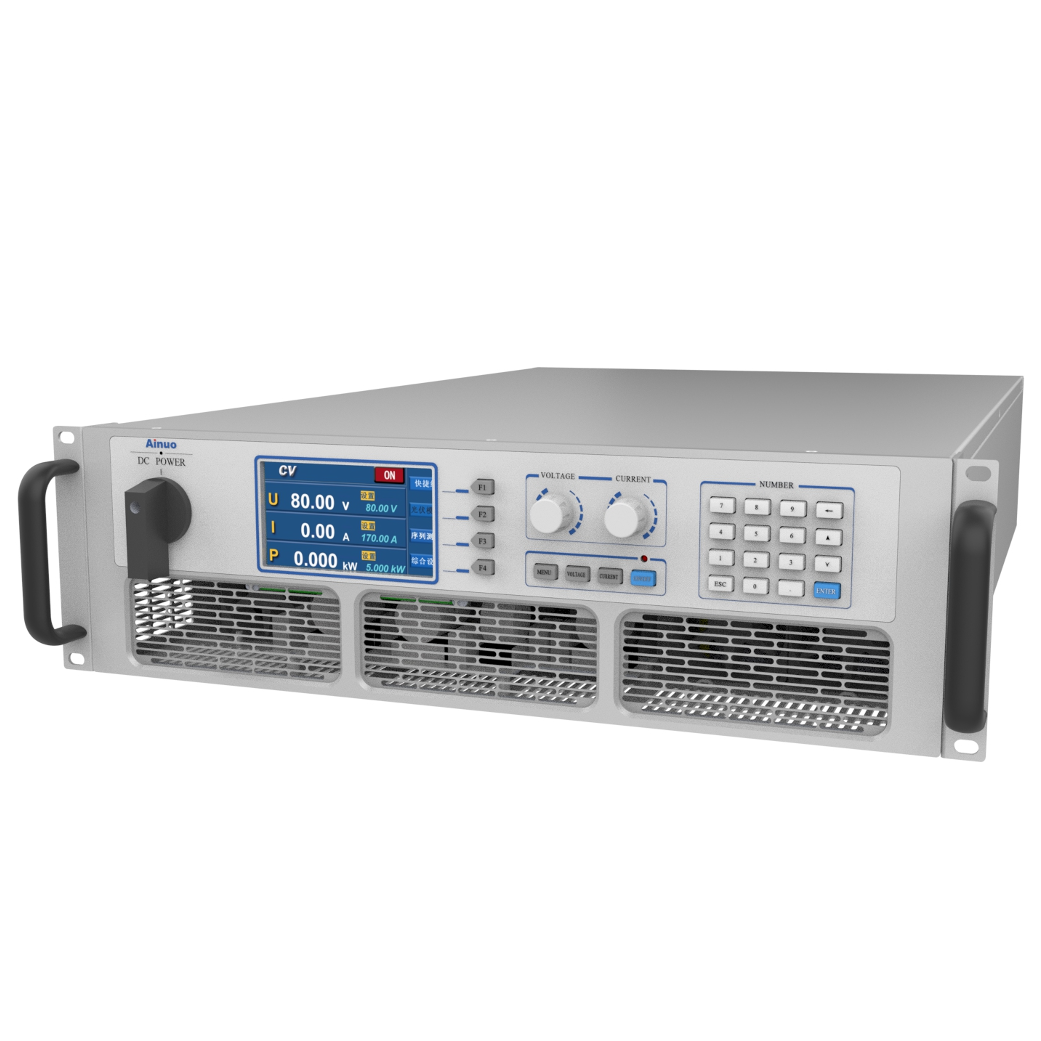

（2） Bidirectional Programmable DC Power Supply AN56(F) Series
a. Combines power supply and electronic load characteristics in one unit, with automatic energy regeneration back to the grid;
b. High power density design — single unit occupies only 1U height, can be mounted in standard 19-inch rack, with maximum power up to 6 kW per unit;
c. Equipped with active power factor correction (PFC) technology, achieving power factor > 0.99 at full load;
d. Supports three operating modes: CV, CC, and CP, meeting a wider variety of test requirements;
e. Features a high-brightness color LCD touchscreen — elegant appearance, simple and intuitive operation.
（3）6½-Digit High-Precision Source Measure Unit (SMU) ANSMU200(F)-3
a. Full four-quadrant operation across the entire range;
b. Wide source/measure range: voltage ±210 V, current ±3.15 A;
c. Low-noise linear power supply technology, with output noise < 3 mVrms;
d. Capable of measuring voltage, current, resistance, and power in both CV and CC modes;
e. 6½-digit measurement display resolution, with minimum voltage resolution of 10 nV and minimum current resolution of 10 fA.
